Polycarbonate CNC Parts - Custom PC Components

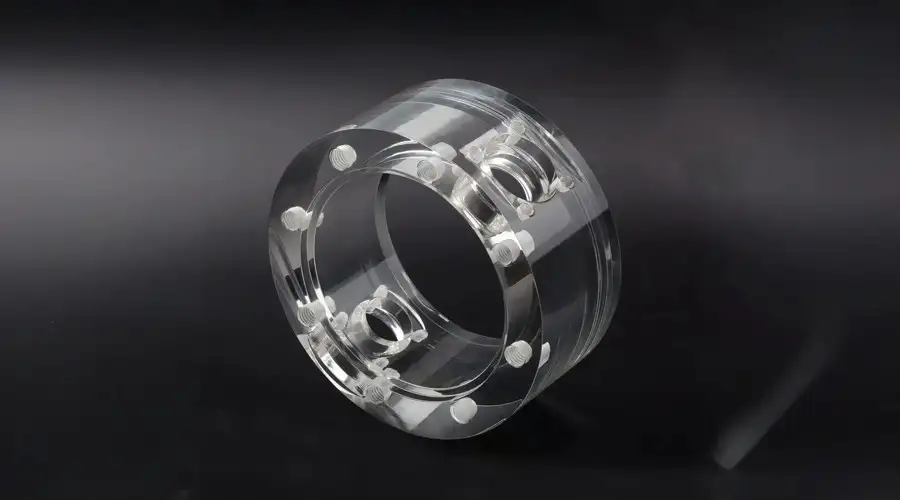

PC Part Detail View

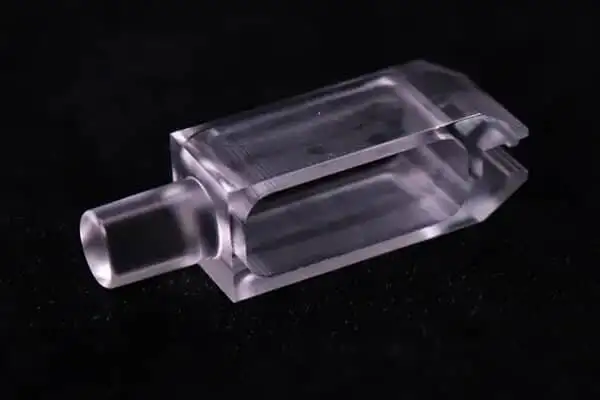

PC Part Application

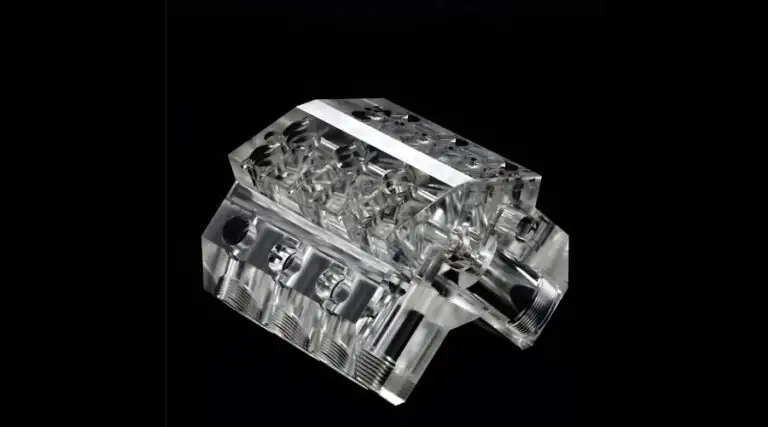

PC Part Dimensions

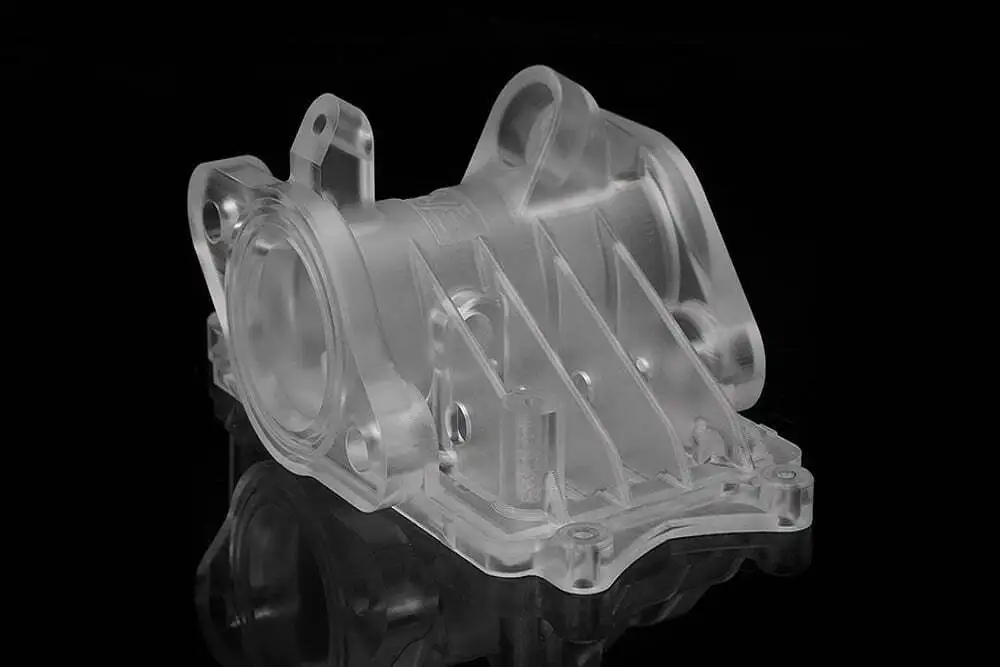

PC Part Close-up

Polycarbonate CNC Parts

Quick Specifications

Material

Polycarbonate (PC)

Process

CNC Machining

Tolerance

±0.1mm

Lead Time

3-5 Days

MOQ

1 Piece

Surface Finish

Painting, Plating, Texturing

Product Overview

Polycarbonate (PC) plastic CNC machining delivers precision-engineered components from one of the toughest and most versatile transparent thermoplastics available. Polycarbonate offers an exceptional combination of properties, including outstanding impact strength (up to 900 J/m), excellent optical clarity (88-91% light transmission), and high heat resistance with a glass transition temperature of 147°C. Its unique balance of transparency, toughness, and dimensional stability makes it ideal for critical applications across safety equipment, optics, electronics, automotive, aerospace, and medical device industries.

Our advanced CNC machining capabilities enable us to produce custom polycarbonate parts with exceptional precision and consistent optical quality. Using state-of-the-art CNC milling and turning centers with specialized tooling for transparent plastics, we manufacture complex geometries, intricate optical features, and tight-tolerance components that maintain the material's clarity and mechanical integrity. Our experienced engineering team collaborates with you throughout the entire process, from material grade selection and design optimization to final delivery, ensuring your polycarbonate parts meet the highest optical and mechanical standards.

We offer comprehensive finishing options for your polycarbonate parts, including optical polishing (achieving up to 92% light transmission), anti-reflective coating, UV-resistant hard coating for outdoor applications, flame retardant treatments (UL94 V-0 achievable), dyeing in various translucent and transparent colors, and precision assembly. These finishes enhance both optical performance and functional properties, providing improved scratch resistance, weatherability, and flame safety. With fast delivery options and no minimum order quantity, we're ready to meet your production needs, whether you require rapid prototypes or large-scale production runs for safety-critical applications.

Technical Specifications

Material Polycarbonate (PC)
Process CNC Milling, CNC Turning, 3-Axis, 4-Axis, 5-Axis Machining
Impact Strength (Notched Izod) 600-900 J/m (exceptional toughness)
Light Transmission 88-91% (excellent optical clarity)
Heat Deflection Temperature 130-140°C at 0.45 MPa
Glass Transition Temperature 147°C (high thermal resistance)
Flame Rating UL94 V-0 achievable (inherently flame retardant)
Tolerance ±0.1mm standard, tighter tolerances available on request
Surface Finish Optical Polishing, Anti-Reflective Coating, UV Hard Coating, Dyeing, Flame Retardant Treatment
Size Range Up to 500mm x 500mm x 500mm
Lead Time 3-5 days for prototypes, 7-14 days for production
MOQ 1 piece (no minimum order quantity)
Certifications ISO 9001:2015, ISO 14001:2015

Applications

Safety Equipment

Safety goggles, face shields, protective visors, helmets, and security glazing requiring high impact strength and clarity

Optical Components

Lenses, light pipes, LED light guides, optical diffusers, prisms, and transparent display covers

Automotive

Headlamp lenses, taillight covers, instrument panel lenses, exterior light covers, and sunroof panels

Electronics

Transparent enclosures, display covers, sensor windows, LED indicators, and electronic device housings

Medical Devices

Surgical instrument handles, fluid management components, lab equipment, and biocompatible medical device parts

Aerospace

Aircraft interior components, cabin windows, instrument panel covers, and lightweight structural parts

Manufacturing Capabilities

900

J/m Impact Strength

91%

Light Transmission

147°C

Heat Resistance

V-0

Flame Rating

Quality Assurance

ISO 9001:2015 Certification

ISO 9001:2015

ISO 14001:2015 Certification

ISO 14001:2015

RoHS Certification

RoHS Compliant

Frequently Asked Questions

What is the minimum order quantity for polycarbonate parts?

We have no minimum order quantity. Whether you need a single optical prototype or thousands of production parts, we can accommodate your requirements with the same level of precision and optical quality.

What is the typical lead time for polycarbonate parts?

Prototype orders typically ship within 3-5 business days. Production orders usually take 7-14 days depending on quantity, complexity, and optical requirements. Expedited options are available for urgent requirements.

What surface finish options are available for polycarbonate parts?

We offer optical polishing (achieving up to 92% light transmission), anti-reflective coating, UV-resistant hard coating for outdoor applications, flame retardant treatments, dyeing in transparent/translucent colors, and precision assembly. Each finish provides different optical and functional benefits.

Is polycarbonate suitable for outdoor applications?

Yes, polycarbonate has excellent weatherability. For extended outdoor use, we recommend UV-resistant hard coating to prevent yellowing and maintain optical clarity. Polycarbonate's high impact resistance makes it ideal for outdoor safety glazing and protective equipment.

Can polycarbonate achieve flame retardant certifications?

Yes, polycarbonate is inherently flame retardant and can achieve UL94 V-0 rating without additives. This makes it suitable for aerospace, transportation, and electronics applications requiring strict flame safety standards.

What is the difference between polycarbonate and acrylic?

While both are transparent thermoplastics, polycarbonate has significantly higher impact strength (250x that of glass) and heat resistance (147°C vs 100°C). Acrylic offers slightly better optical clarity (92% vs 91%) and UV resistance, but is much more brittle. Polycarbonate is preferred for safety-critical applications requiring impact resistance.
